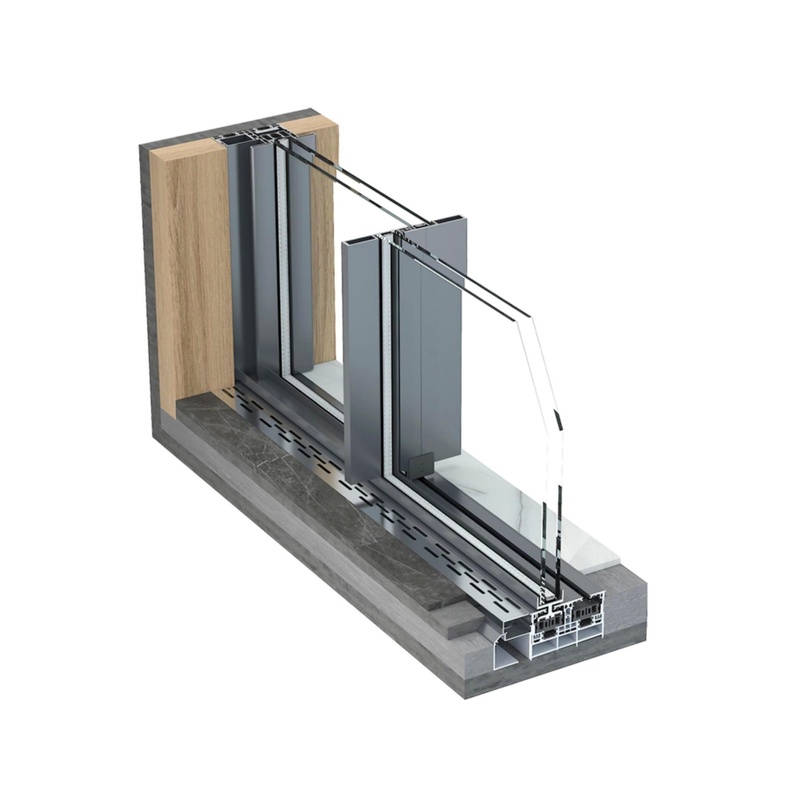

The Panoramic Sliding Door 39XAG delivers ultra-slim sightlines for modern-style luxury projects. Built with heavy-gauge aluminum profiles and polycarbonate composite materials, it supports up to 5-meter tall door sashes, corner-free corner openings and concealed-track installation.
Modular assembly supports both manual and motorized operation, balancing minimalist aesthetics, excellent thermal performance and easy maintenance. Ideal for high-end villas, residences and commercial buildings pursuing broad unobstructed views.
Key Features
Ultra-Slim Sightline & Corner-Free Opening
Profile base thickness ranges from 2.0–5.0mm. Adopting ultra-slim light-penetrating profile and frame-wrap-sash framework, it delivers reliable performance with minimalist wide-view aesthetics. Enables corner-free corner opening to maximize design possibilities.
Advanced Polycarbonate Composite Material
High-tech polycarbonate composite components realize streamlined minimalist construction, while greatly enhancing thermal insulation performance and lowering the risk of spontaneous glass breakage for long-term reliable service.
Up-to-5-meter Oversized Height
Supports customized ultra-high sash height up to 5 meters. The generous large-opening design achieves elegant visual effects without compromising overall functional performance.
Modular Construction & Easy Maintenance
Modular assembly structure simplifies on-site inspection, quick maintenance and after-sales service. Both manual and motorized operation modes are available for flexible intelligent application scenarios.

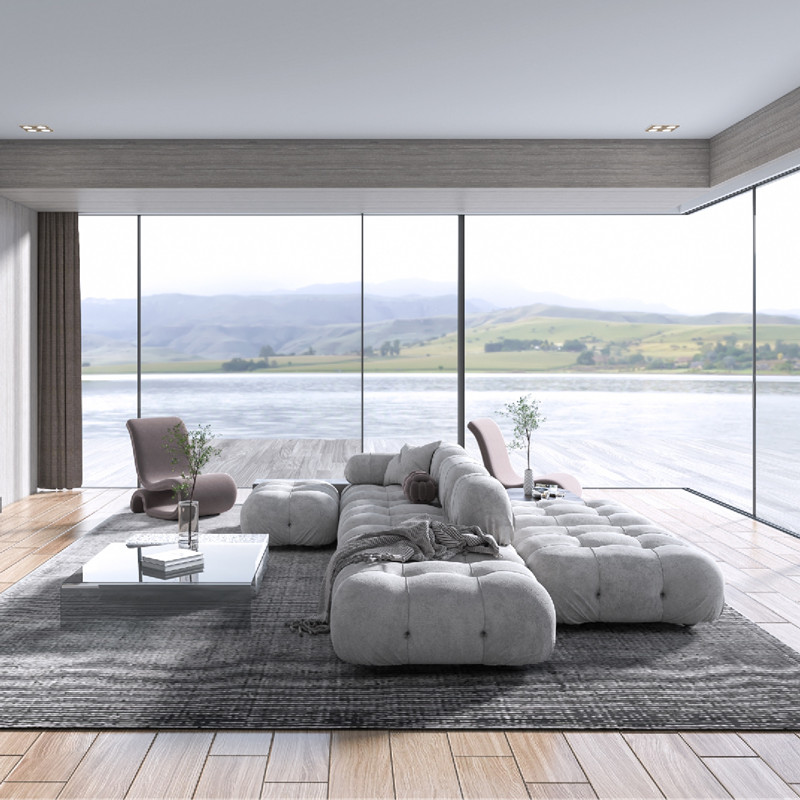

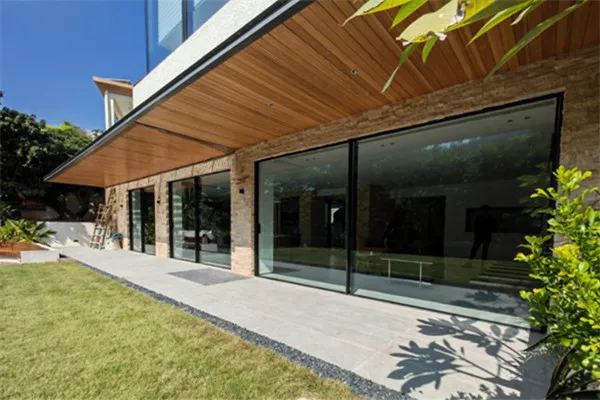

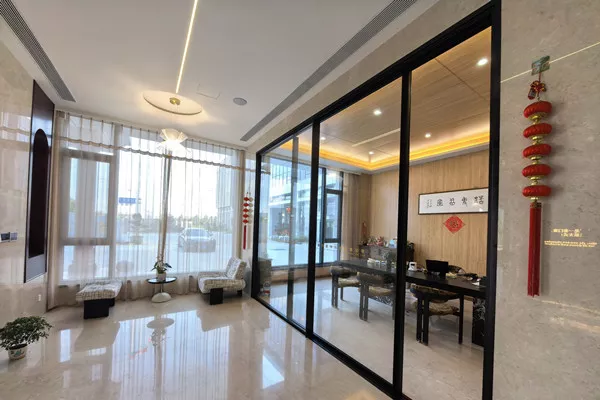

Application
Standard Configuration
Item
Specification
Profile Thickness
2.0‑5.0 mm Aluminum Alloy
Mullion Visible Width
20 mm
Frame Visible Width
50 mm
Top‑track Visible Width
60 mm
Hardware & Roller Set
PC thermal‑insulation material, POM steel‑embedded roller set, 304 stainless‑steel roller set
Standard Glass Unit
8 mm Clear‑white +22A +8 mm Clear‑white Insulated Glass
Available Colors
Matt Black, Graphite Black, Space Grey, Coffee Brown
Max Sash Area
Sliding sash:12 ㎡；Fixed sash:18 ㎡
Technical Specifications
Performance Item
Parameter
Air Tightness
Level 5
Water Tightness
Level 5
Wind‑load Resistance
Level 10
Thermal Insulation
1.2‑1.8 W/(m²·K)
Sound Insulation
Rw=35 dB
