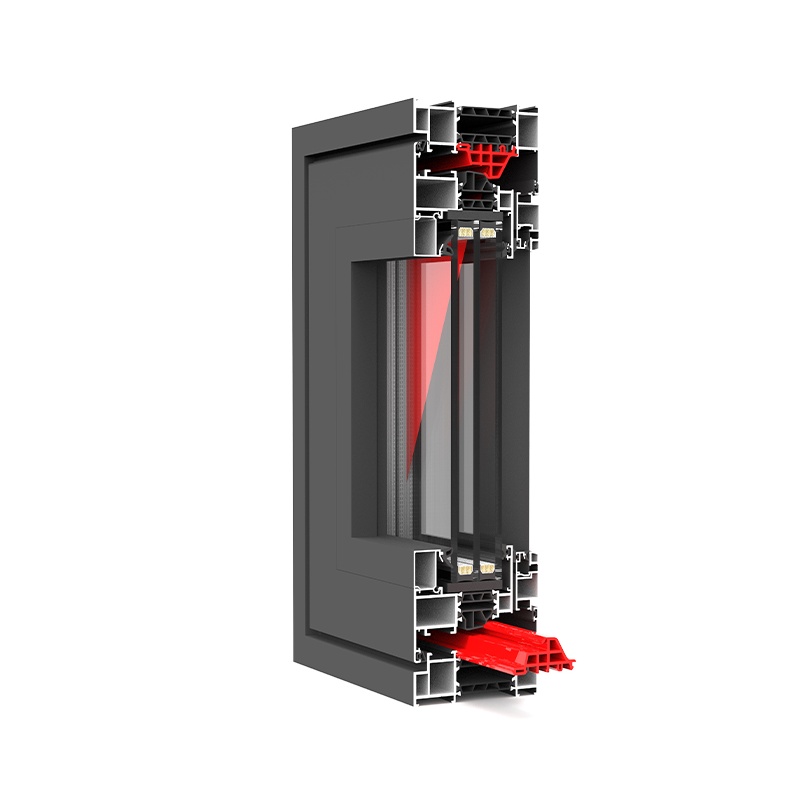

YP96 Double Inward-Opening Thermal Break Aluminum Window is a high-performance aluminum window system optimized for energy-saving residential renovation and new-construction projects. Featuring thick-wall aluminum profiles, 45.3mm PA66-GF25 thermal break strips and triple-sealing construction, the system provides excellent thermal insulation, air tightness and wind-load resistance.
The frameless insect screen design allows flexible mesh replacement and cost-effective maintenance while maintaining a clean architectural appearance.
Key Features
Thermal Insulation
Equipped with 45.3mm PA66-GF25 thermal break strips and vertical isotherm design, YP96 effectively reduces heat transfer. Triple-glazed configurations are available for enhanced thermal and acoustic performance.
Heavy-Duty Profiles
Thick-wall aluminum profiles provide excellent structural stability. The load-bearing frame reaches 2.0mm, with general profiles at 1.8mm and screen sash thickness at 1.2mm.
Equal-Pressure Drainage
The exposed-frame drainage structure with drip lines and independent channels creates an equal-pressure drainage path to reduce rainwater infiltration.
Triple Sealing System
Water-vapor separation gaskets and EPDM co-extruded foam seals create a triple-sealing structure, improving air tightness and minimizing heat loss.
Frameless Insect Screen
The detachable frameless screen design allows flexible mesh replacement. Stainless-steel security mesh and standard fly-screen mesh can be selected according to project requirements.
Precision Corner Joint
Reinforced glazing beads and precision corner joints using punch corner keys or pin corner keys improve wind-load resistance, assembly efficiency and overall structural reliability.

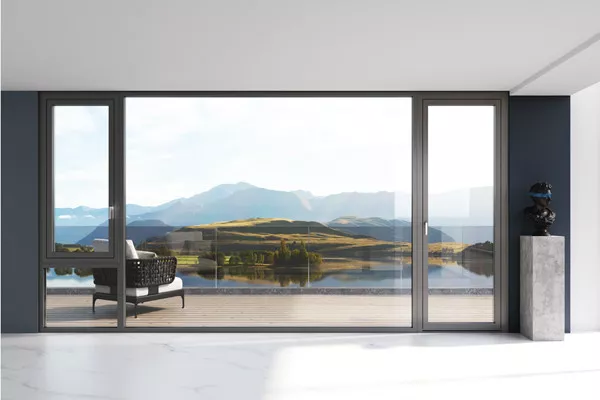

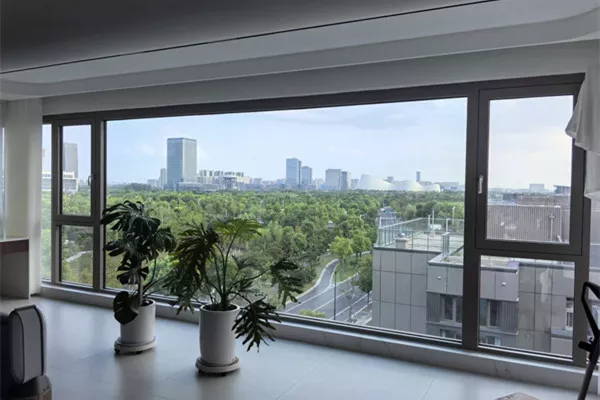

Application
Technical Specifications
Parameter
Specification
Frame Depth
96.2 mm
Sash Depth
75.2 mm
Frame Visible Width
60 mm
Sash Visible Width
103.3 mm
Glazing Bead Visible Width
25 mm
Frame Thermal Break Strip
45.3 mm
Sash Thermal Break Strip
30 mm
Insulated Glass Option 1
5 mm+20A+5 mm Double‑glazed Unit
Insulated Glass Option 2
5 mm+12A+5 mm+12A+5 mm Triple‑glazed Unit
Performance Ratings
Performance ratings are based on China's national GB/T 7106 test method, with YP96 achieving Level 5 water tightness, Level 8 air permeability and Level 9 wind load resistance through its thermal break and sealing system.
Water Tightness
Level 5
Level 5 on GB/T 7106 — resists wind-driven rain infiltration under standard test pressure.
Air Permeability
Level 8
Level 8 on GB/T 7106 — limits uncontrolled air leakage through the frame and sash.
Wind Load Resistance
Level 9
Top grade (9) on GB/T 7106 — suitable for exposed elevations and demanding applications.
Thermal Insulation
Level 8
High thermal insulation performance based on selected frame and glazing configuration.
Sound Insulation
Level 3
Sound insulation performance rating for the selected glazing configuration.
