The BF115 is TAYON's high-end intelligent window solution developed for modern architecture, high-end residences, commercial buildings and smart home projects. Adopting European standard 6060-T66 aviation-grade aluminum alloy profiles and new national standard high-performance thermal insulation strips, the whole window delivers outstanding structural stability, energy-saving performance and intelligent experience.
Combining electric automatic opening & closing, detachable screen integration and ultra-high comprehensive physical performance, it perfectly meets the high-standard building needs of energy saving, ventilation, safety and intelligence in overseas markets.
Key Features
Industrial-Grade Electric Drive System
Equipped with customized brushless motor and high-precision planetary gearbox, supporting more than 30,000 opening and closing cycles with stable operation and low noise. Manual priority design allows window operation even during power failure.
Strong Compatibility & Intelligent Control
High-torque motor compatible with all mainstream overseas window hardware including friction hinges, gear hinges, and invisible hinges. Dual-core main controller supports Wi-Fi and Bluetooth dual connection for cloud remote control and smart home linkage.
Minimalist Flat Appearance

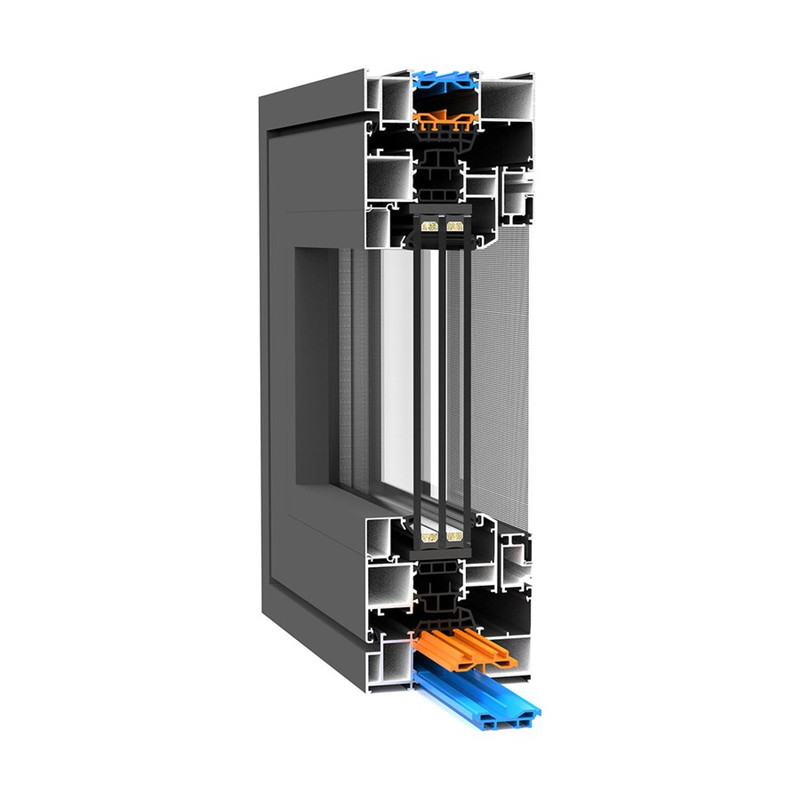

Adopting frame and sash flush integrated design, the internal and external surfaces are flat and unified with neat square lines. Optimized multi-cavity structure and high-spec thermal insulation strips effectively block heat conduction.
Innovative Frameless Screen Design
Innovative screen structure cancels the traditional screen frame, reducing overall weight and installation cost. Detachable screen sash supports free switching between stainless steel security mesh and ordinary anti-mosquito mesh.
High-Precision Corner Assembly
Adopting pin corner code with built-in diversion tank and two-component full glue injection process. Assembly precision reaches 0.3mm with smooth corner surface, high overall structural strength, no cracking or deformation.

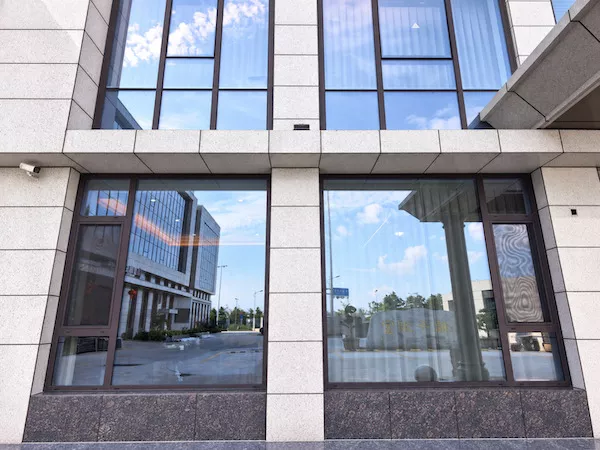

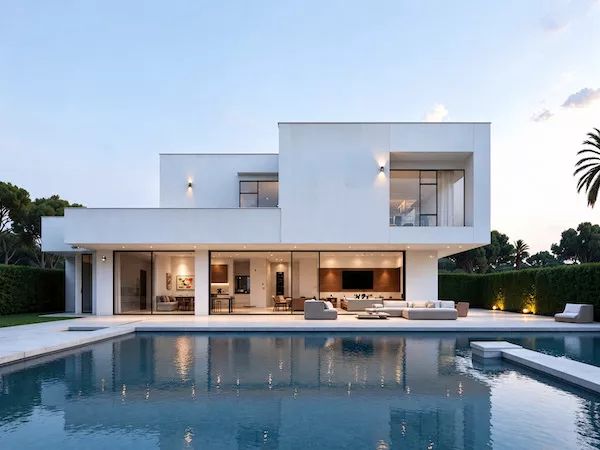

Application
Technical Specifications
Item
Frame
Window Sash
Profile Thickness
115mm
89.6mm
Visible Face Width
64mm (Mullion: 25mm)
114mm
Thermal Strip
44mm
34mm
Glass Configuration
5mm+20A+5mm Double Glazing
5mm+12A+5mm+12A+5mm Triple Glazing
Performance Ratings
Water tightness, air tightness and wind load resistance are graded on China's national GB/T 7106 test method, where a higher grade number indicates stronger performance.
Water Tightness
Level 6
Level 6 — excellent resistance to wind-driven rain infiltration under standard test conditions.
Air Tightness
Level 8
Level 8 — superior air leakage resistance, minimizing uncontrolled air exchange through the frame.
Wind Resistance
Level 9
Level 9 — top grade wind resistance, ideal for high-rise and exposed elevation applications.
Thermal Insulation
Level 9
Level 9 — high-performance thermal barrier for superior energy efficiency.
Sound Insulation
Level 4
Level 4 — effective sound reduction for quieter indoor environments.
