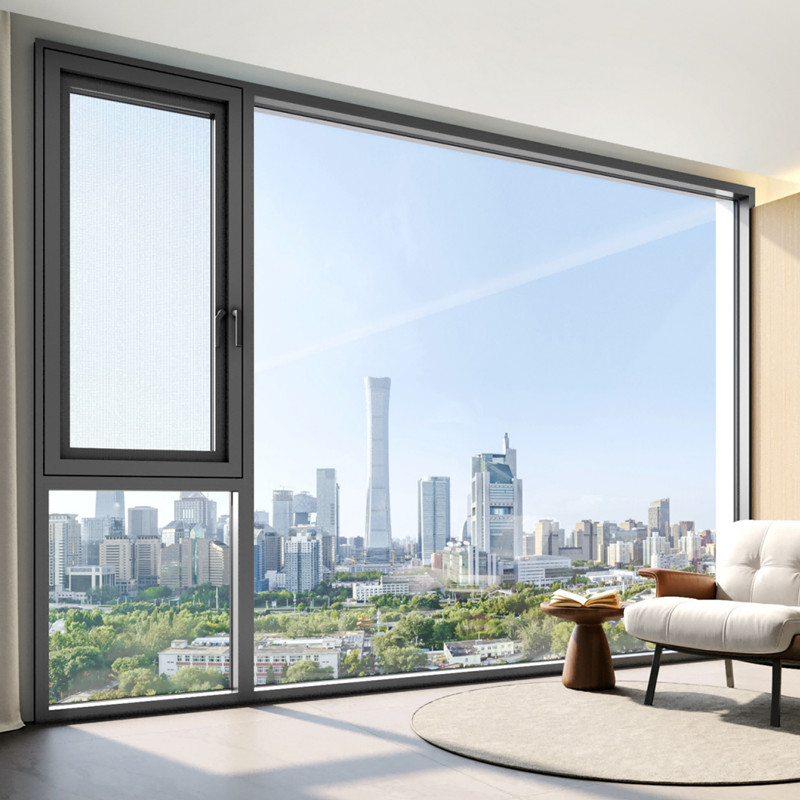

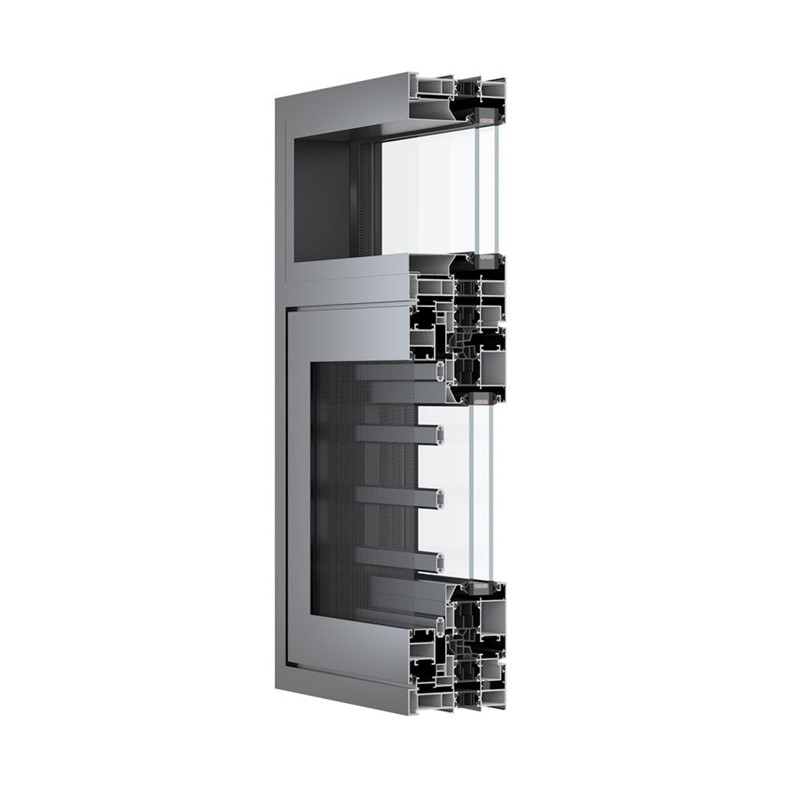

The ES110 is Taiyang's high-performance outward-opening thermal break aluminum window system, offering dependable weather resistance with a slim 26mm flush frame-sash profile. Built on 6063-T5 aluminum with dual wall-thickness options (1.8–2.0mm), the same platform can be specified as a cost-optimized or high-performance solution for villas, high-rises, and commercial projects.
One-piece welded equal-pressure gaskets eliminate splicing gaps for superior water and air tightness. Multi-layer sealing strips at adapter/transom joints create a robust weather barrier, while reinforced cavity-structure glazing beads deliver Grade 9 wind-load resistance — the highest classification available.
Key Features
Dual wall-thickness options
3.0mm and 2.0mm main frame configurations let the same platform be specified as a cost-effective or a high-performance solution, in line with national standard requirements.
Flush frame-sash design
Frame and sash sit flush with a visible sightline of only 26mm — a slim profile that balances a clean architectural appearance with structural safety.
Integrated equal-pressure gasket
The gasket is formed with a one-piece welding process rather than joined segments, improving water tightness, air tightness, and long-term ease of cleaning.
Multi-seal adapter frame
Transom and adapter joints use multiple sealing strips to block water infiltration, with the assembly's physical performance verified through GB/T 7106 water, air and wind testing.
Reinforced glazing beads
High-strength cavity-structure beads increase wind-pressure resistance, while dual inner/outer gaskets clamp the glass for a more secure, weathertight installation.
Configurable hardware & finish
Supplied with casement-specific hardware and a choice of powder-coat or ceramic (electrophoretic) finishes across three standard colorways.

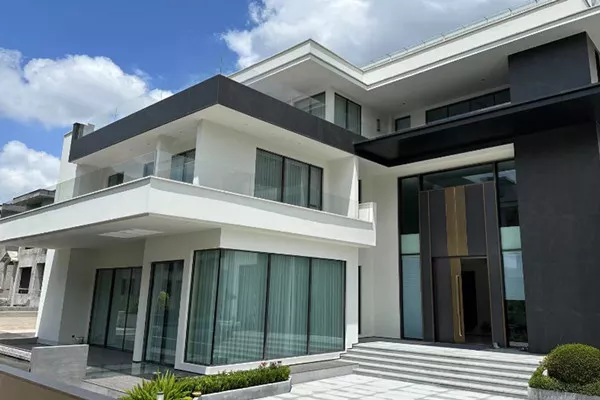

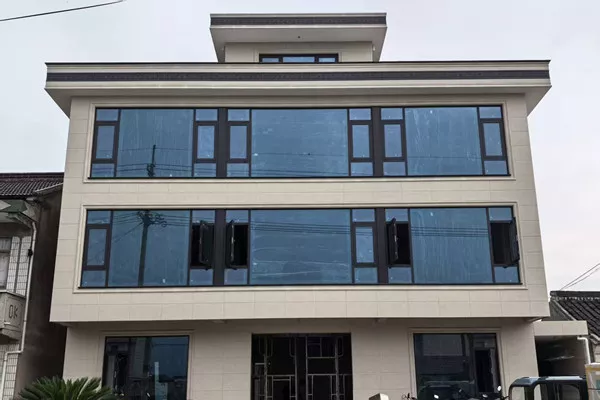

Application
Technical Specifications
Profile
6063-T5 aluminum alloy, 1.8–2.0mm main frame wall thickness Finish: powder coating or ceramic (electrophoretic) coating
Hardware
CMECH casement hardware set
Gaskets
Jiangyin Haida / Fenfa EPDM sealing strips, one-piece welded construction
Thermal Break Strip
29mm polyamide thermal break strip (national standard compliant)
Standard Colors
Skin Black, Starry Gray, Coffee Brown Additional RAL / custom colors available on request
Visible Sightline
Frame / mullion: 27mm · Screen sash: 50mm
Glazing
5mm + 15A airgap + 5mm tempered insulated glass unit (IGU) Alternative glazing builds (Low-E, laminated) available on request
Opening Type
Outward-opening (casement), fixed and operable sash configurations
Performance Ratings
Water tightness, air tightness and wind load resistance are graded on China's national GB/T 7106 test method, where a higher grade number indicates stronger performance.
Water Tightness
Grade 5
Grade 5 of 9 on GB/T 7106 — resists wind-driven rain infiltration under standard test pressure.
Air Tightness
Grade 5
Grade 5 of 9 on GB/T 7106 — limits uncontrolled air leakage through the frame and sash.
Wind Load Resistance
Grade 9
Top grade (9) on GB/T 7106 — suited to high-rise and exposed elevation applications.
Thermal Transmittance
1.2–2.0 W/(m²·K)
Uw value range depending on frame wall thickness and glazing configuration selected.
Acoustic Insulation
35 dB
Rated sound reduction (Rw) for the standard 5+15A+5 glazing build.
Frame Configuration
2.0 / 3.0mm
Two main-frame wall thickness options to match performance and budget requirements.
About GB/T 7106: GB/T 7106 is China's national test method standard for the air permeability, water tightness and wind load resistance of building exterior windows and doors. It is a laboratory test-method standard, distinct from CE marking or other regional product certifications — project teams working to European or other regional codes should confirm which local standard applies for their jurisdiction.
Finishes & Colors
Three standard finishes are available in powder-coat or ceramic (electrophoretic) coating; custom RAL matching can be discussed for project orders.
Skin Black
Starry Gray
Coffee Brown
