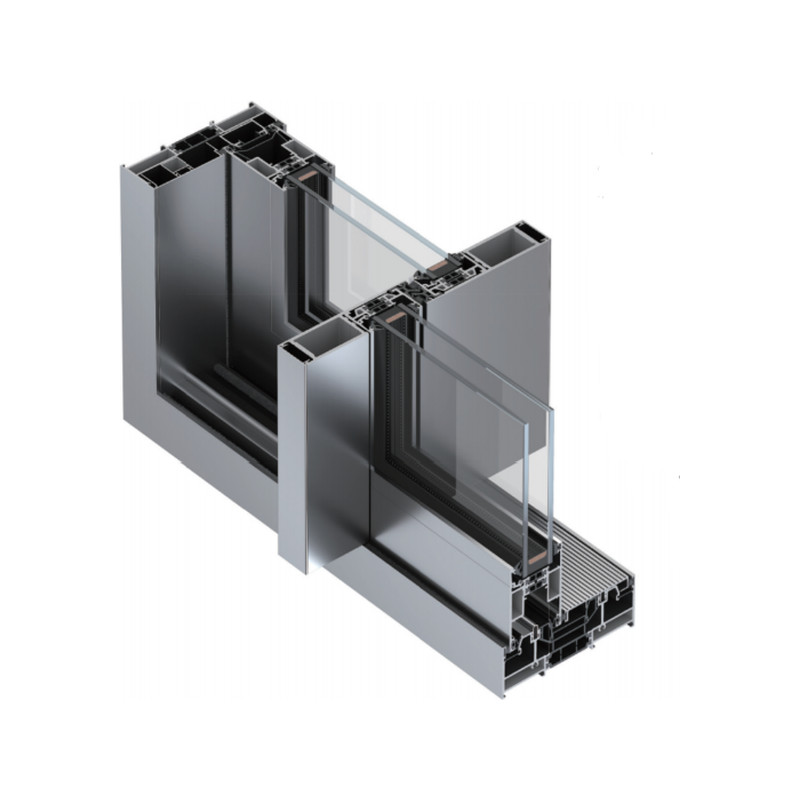

The PS128 is Taiyang's heavy-duty lifting-sliding door system designed for luxury villas, high-end residences and premium commercial projects. Constructed with heavy-gauge 6063-T5 aluminum profiles and CMECH concealed lifting hardware, this system supports extra-large sash dimensions with maximum load-bearing up to 600kg.
It adopts embedded frame-wrap-sash structure together with composite sealing assembly, delivering excellent air-water tightness and structural security. Slim sightline design expands panoramic viewing experience. Available for manual & motorized dual operation. Compliant with GB, AAMA and CSA standards, perfectly adapted for global high-end construction projects.
Key Features

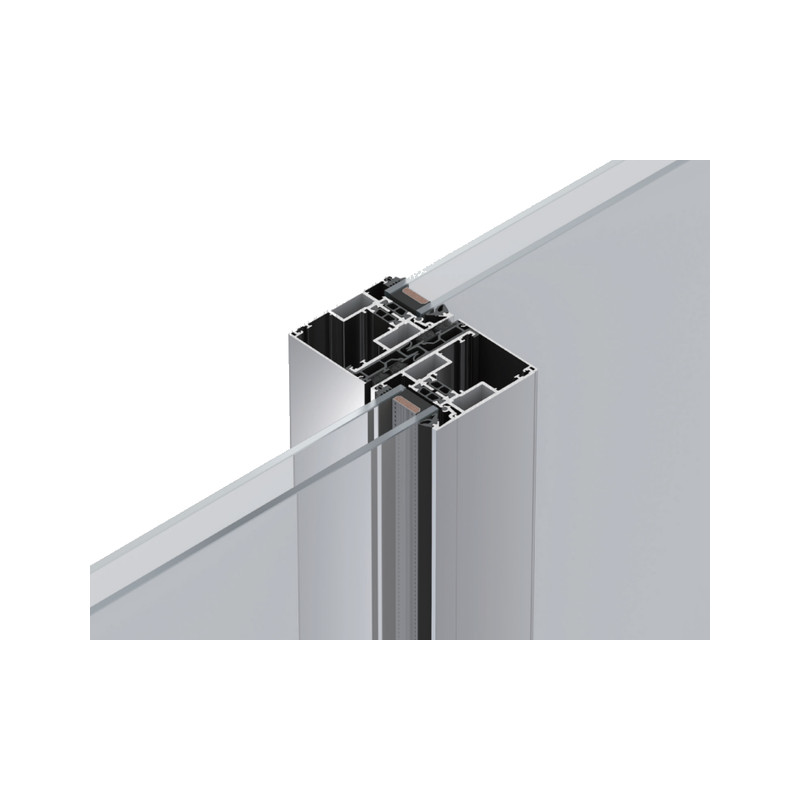

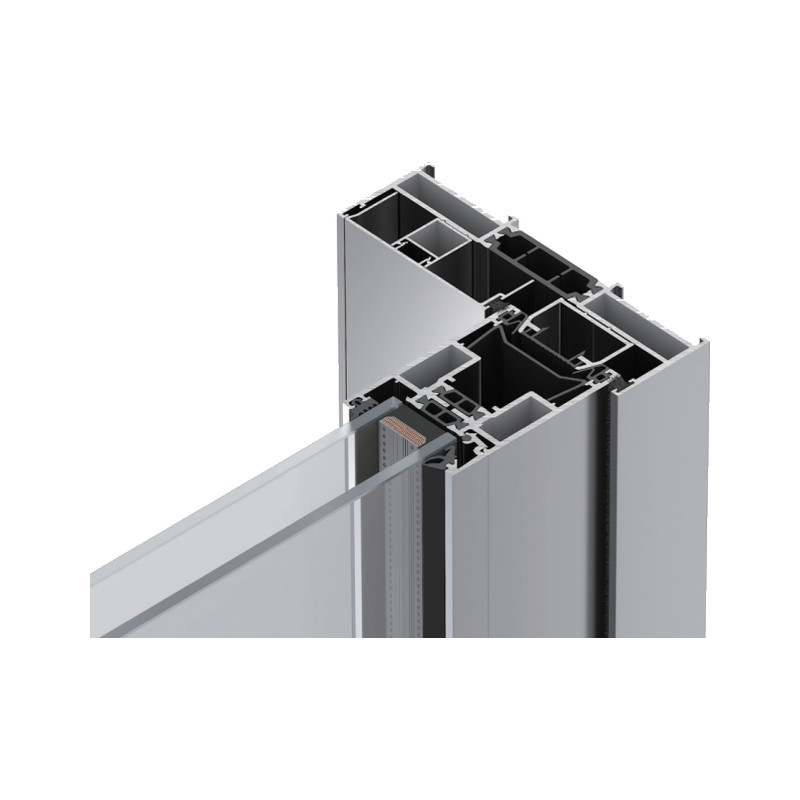

Heavy-gauge Profile & Embedded Structure
Main profile thickness reaches 2.2mm. Full-perimeter embedded frame-wrap-sash design improves fitting precision, greatly boosts sealing performance and overall structural safety.
Slim Sightline for Panoramic Vision
Sash visible face width: 72mm / 84mm. Paired with 32mm narrow mullion connector, it realizes minimalist narrow-edge aesthetics while supporting large-size openings. Max single-sash load capacity reaches 600kg.
Premium Composite Sealing
New composite sealing components guarantee stable sealing performance under harsh weather conditions. Rigid parts adopt high-strength nylon material for reliable structural support and long-term stability.
Manual & Electric Dual Operation
Adopts world-class CMECH concealed lifting hardware (rated 300kg per set). Supports manual / motorized dual-control. Max single sash dimension: 3500mm × 3200mm, meeting grand facade design demands.
International Compliance
Certified to Chinese GB, American AAMA and Canadian CSA standards, satisfies global project acceptance requirements.

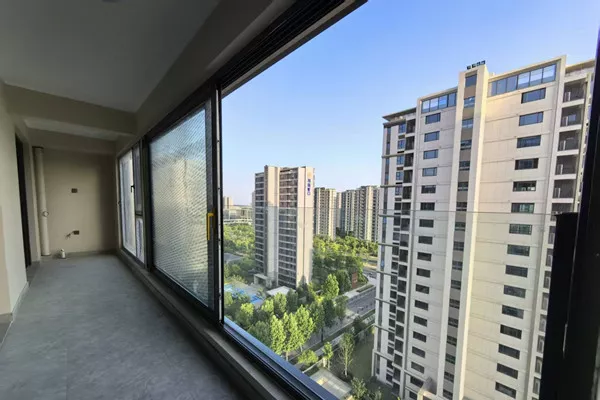

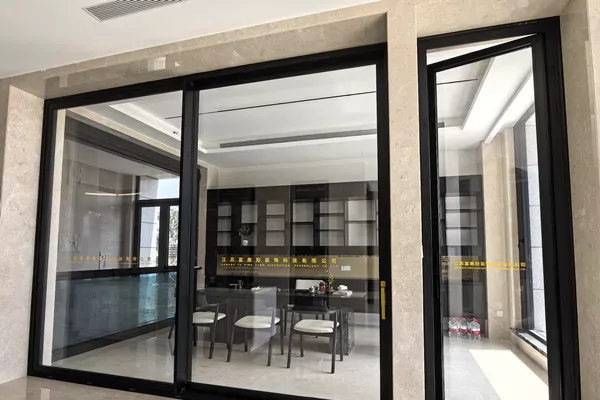

Application
Standard Configuration
Item
Specification
Profile Material
6063‑T5 Aluminum Alloy
Thickness:1.8‑2.2 mm
Surface Finish: Powder‑coating, Ceramic Coating
Hardware
CMECH Concealed Lifting‑Sliding Hardware (300 kg rated)
Thermal Break
Ronghai Thermal Strip
Available Colors
Matt Black, Space Grey, Coffee Brown
Frame Visible Width
40 mm
Mullion Visible Width
32 mm
Sash Visible Width
72 mm / 84 mm
Structure Depth
128 mm
Max Glass Thickness
≤37 mm
Glass Option
5 mm+20A+5 mm Tempered Insulated Glass
Technical Specifications
Performance Item
Parameter
Maximum Sash Weight
600 KG
Thermal Insulation (U‑value)
K≤2.0 W/(m²·K)
Solar Heat Gain Coefficient
0.2＜SHGC≤0.3
Sound Reduction
Rw＜36 dB
Air Tightness
0.75 m³/(m·h)
Water Tightness
350 Pa
Wind‑load Resistance
≤5.0 kPa
