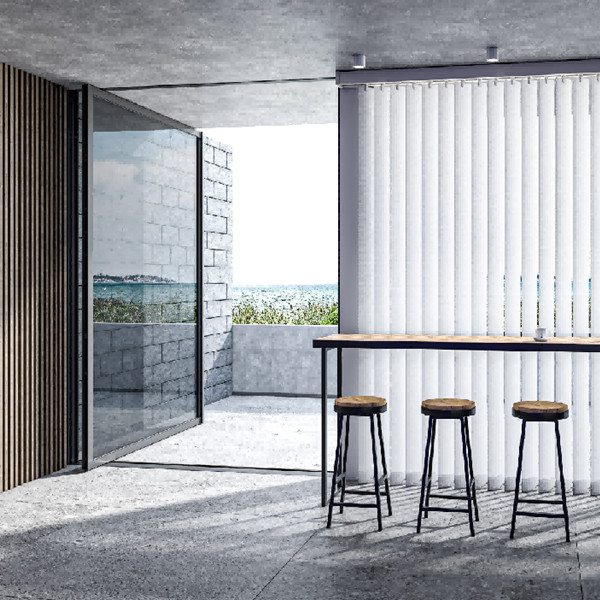

Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104
Heavy Duty Pivot Door PD104

Heavy Duty Pivot Door PD104

Frame Material
6063-T5 Aluminum Alloy, 2.0–6.0mm wall
Opening Style
Pivot (center-swing)
Sightline
50mm frame / 86mm sash
Glazing
8mm+22A+8mm insulated glass
Water / Air / Wind Grade
Level 6 / Level 4 / Level 9
MAX SASH AREA
7.5 ㎡

Contact Us Now

Description

Reviews

Overview

The PD104 Pivot Door System is a high-performance pivot door solution tailored for luxury residential and high-end commercial projects. Supported by robust aluminum structure and premium imported hardware, it enables custom-built extra-high door panels up to 5 meters.

Featuring ultra-slim frame with concealed-installation capability, multiple pivot hardware options and minimalist linear facade styling, this system delivers broad unobstructed views, flexible personalized customization and efficient on-site installation.

Multiple hardware variants cover 150kg–500kg load-bearing capacity, perfectly meeting diversified high-end facade design requirements worldwide.

Key Features

Robust Structural Design for Up-to-5-meter Height

Engineered with heavy-duty aluminum structure to support bespoke oversized door height up to 5m. Fitted with genuine imported hardware assemblies, ensuring smooth, flexible operation and outstanding long-term durability.

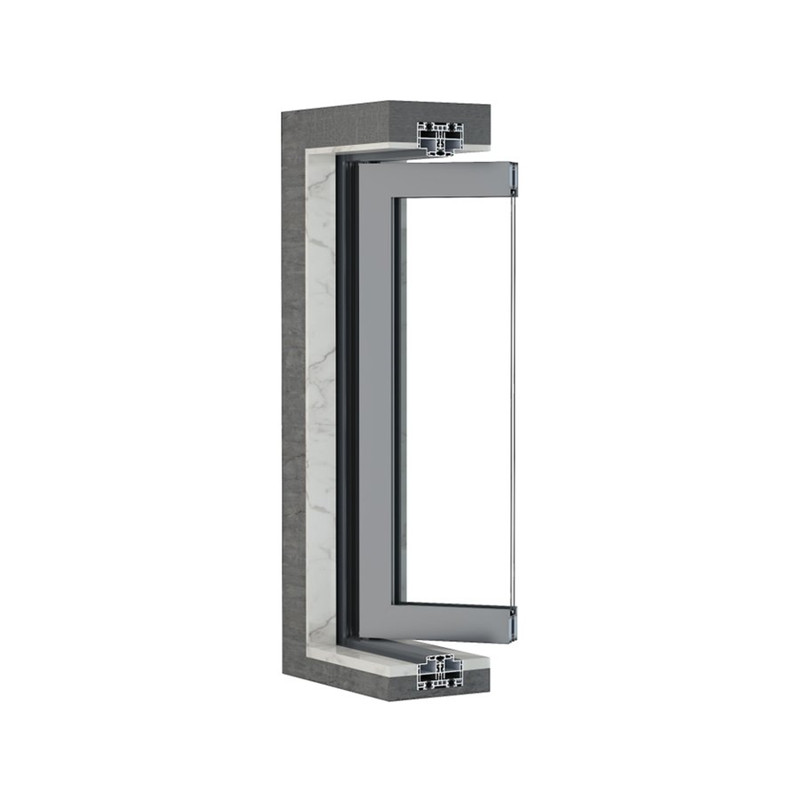

Ultra-Slim Frame with Concealed-Mount Solution

Adopts ultra-narrow simplified frame design. The frame can be fully concealed during installation to minimize visual obstruction, maximise glass viewing area and create seamless open-view boundaries.

Versatile Pivot Mechanism Options

Multiple pivot hardware configurations are available to satisfy diverse aesthetic & functional demands, offering great flexibility for high-end residential custom projects.

Minimalist Linear Facade & Fast-Track Installation

Clean-cut linear exterior profile delivers timeless minimalist aesthetics. Optimized structural design simplifies field assembly, enabling time-saving, efficient installation.

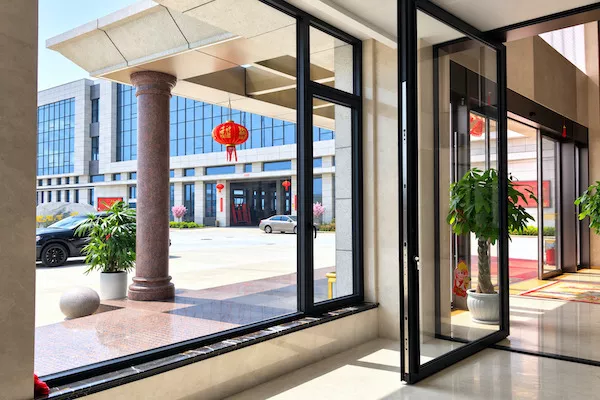

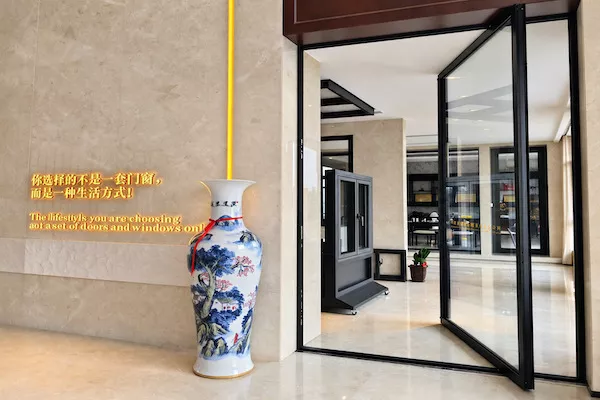

Application


Standard Configuration

Item Specification
Profile Material 6063‑T5 Aluminum Alloy Thickness: 2.0‑6.0 mm Surface Finish: Powder‑coating, Fluorocarbon Coating, Ceramic Coating
Custom Seal Gasket SKYVIEW customized aviation‑grade sealing gasket
Available Colors Matt Black, Graphite Black, Space Grey, Coffee Brown
Frame Visible Width 50 mm
Sash Visible Width 86 mm
Standard Glass Unit 8 mm Clear‑white +22A +8 mm Clear‑white Insulated Glass
Max Sash Area 7.5 ㎡

Hardware Options

Option 1｜150 kg Load Rating
Kinglong pivot hinge, GU manual handle & mechanical lock system
Sash dimension: W 2000‑3200 mm, H 1000‑3000 mm

Option 2｜150 kg Load Rating
Kinglong pivot hinge, GU motorized electronic lock with fingerprint access
Sash dimension: W 2000‑3200 mm, H 1000‑3000 mm

Option 3｜500 kg Load Rating
FRITSJURGENS pivot hinge, FUHR motorized electronic lock with fingerprint access
Sash dimension: W 2000‑5000 mm, H 1000‑3000 mm

Technical Specifications

Performance Item Parameter
Air Tightness Level 6
Water Tightness Level 4
Wind‑load Resistance Level 9
Thermal Insulation 2.5 W/(m²·K)
Sound Insulation Rw=35 dB
Maximum Sash Height 5 m
